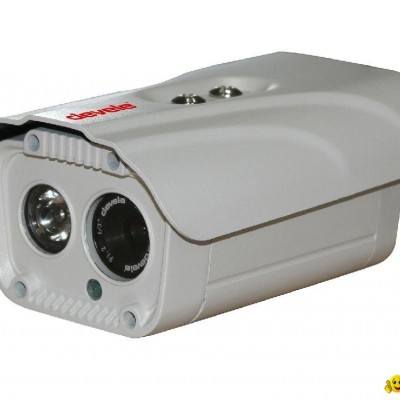

Model: DV-HP857D
(Video camera)
The main processor: The HI Hisilicon series of high-performance DSP
Sensor: 1/4 HDIS sensor
Number of pixels: 1 million(1280*720)
Minimum illumination: 0Lux(LED open) 1Lux(LED close)
Lens: 4mm/6mm/8mm/12mm/16mm optional
IR view distance: 30-50m
(Hardware)
Compression format: H. 264 Main Profile@Level 3.0 / MJPEG
Operating system: Embedded Linux
Audio standards: G. 726
Resolution: 720P: 1280*720 D1: 704*576 CIF: 352*288 QCIF: 192*144PAL25 frame
frame rate: 30FPS
( Function)
Network protocol: TCP/IP HTTP ARP TCP ICMP DHCP UDP SMTP FTP DDNS RTSP
Wide dynamic: 128dBdynamic range
ONVIF: Support
POE power supply: Optional
Alarm: One alarm input and one alarm output
OSD overlay: Support
Motion Detection: Support
Password protection: Support
(Peripheral Interface)
Communication interface: 1 RJ45 10M/100M Ethernet port one alarm input and one alarm output, an RS485 interface
(Other specifications)
Operation temperature: -20° C-55° C
Power supply: DC12V 2A
Dimensions: 148mm(L)*100mm(W)*73mm(H)
Weight: 640g
Three years warranty to prove our products quality.
We Approved UC/FCC/CE/RoHS/ International certification.
