HLR6100-1ATJCF-DC24 Power Relay_Air-conditioner_Consumer Electronics & Lighting_supply

Related Products from this Supplier

1、Applicable and Description

1. Applicable Scope

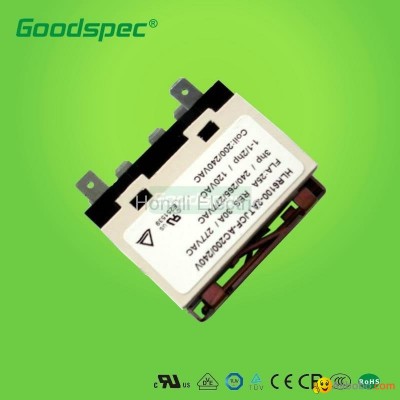

HLR6100-1ATJCF-DC24 power relay 1A is 1 pole, nominal current 30A attaches the post (T) primarily, the screw post (B), the printed wiring board uses the post (P) and so on. Is suitable in the compressor, the heater control, the motor, the power source control, the duplicator, the facsimile machine, the flare control, the microwave oven, electric appliances and equipment's and so on packaging machine and food processing machinery single-phase load circuit's control. This product has the volume to be small, the weight is light, the coil power loss is low, the contact load is big, anti-impact ability, characteristics and so on redundant reliability.

2.Type and Meaning

HLR6100	-	1A	T	J	CF	-DC24
6100 series	Bulk Pack	1 Pole	Quick-connect terminals	with test button	Class F insulation	24 VDC

2、 Product Explanation And Main Technical Parameter

★　Rating of insulation voltage Ui ： 600V

★　Rating of contacts voltage Ue ： AC 277V

★　Rating of current： Ie=30A （ AC-8b ), Ith=40A

★　Mechanical life＞ 10，000，000times

★　Electricity life＞ 100，000times

★　Coil working voltage scope: 70% ～110%Us

★ Product coil working voltage Us=12,24,36,48,110/120,220/240VAC&VDC

3、Conforms To The Standard

	1 、 Conforms To UL508, IEC60947, GB14048 Standard。
	2 、Approved By UL,ROHS and ISO9001 System Certification(SGS)。
	UL Files Number: E251539

4、Ordering Request

In Order To Guarantee You Purchase Right, Please Read The Specify Type Before Order.

If you request as follows: Nominal current: 30A, working voltage: 240/277V, pole number: 1 pole, coil control voltage:24VDC, wiring way: A group 1/4 " fast attachment, load: The single-phase perception or the linear load, brings the test button, the insulation grade: CLASS F, packing: 120/each box (factory packing). Then you may the shaping be：HLR6100-1ATJCF-DC24

Ie	Pole	Rating of Coil Control Voltage					Motor Power
Ie	Pole	12VDC	24VDC	120VDC	208/240VDC	277VDC	240VAC
30A	1P	HLR6100-1ATJCF-DC12	HLR6100-1ATJCF-DC24	HLR6100-1ATJCF-DC120	HLR6100-1ATJCF-DC208/240	HLR6100-1ATJCF-DC277	2.5Kw

HonGLI ELECTRIC HLR6100 Series PRODUCT CATALOG
DownLoad PDF DataSheet
