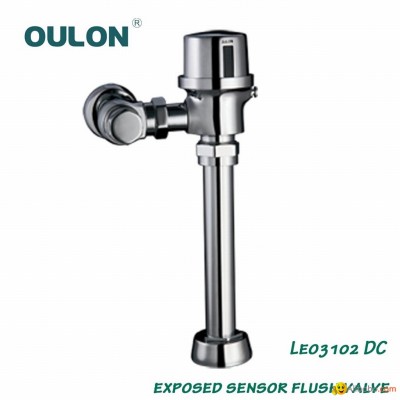

Leo3102DC Exposed sensor flush valve

 Product features

Quiet, Exposed, Diaphragm Type, Chrome Plated Closet Flushometer for either left or right hand supply with the following features:

Electronic Dual Flush Battery Powered Infrared Sensor forautomatic “No Hands” operation“Low Battery” Flashing LEDHigh Back Pressure Vacuum Breaker Flush Connection with One-piece Bottom Hex.Coupling NutSpud Coupling and Flange for 1½” Top SpudStrainer Valve: Built-in stainless steel strainer valve .Dual Flush Mechanism: This allowed half flushing when full flushing is not necessary and prevents wastage of water consumption.Manual-overriding during power failure: During power failure, the system is still working normally by pressing the manual overriding button.

 Technical Information

1	Power Supply	DC6V(4 Alkaline “AA” Battery)
2	Recognize Range	40-80cm adjust automatically
3	Applicable water pressure:	0.1-0.8Mpa (15PSI-120PSI)
4	Main Flushing time	6,9,12s(adjustable)
5	Water inlet pipe diameter:	G1"
6	Battery Life	2 years (4,000 uses/month)
7	Recognition time	<1.5s
8	Protection class	IP54
