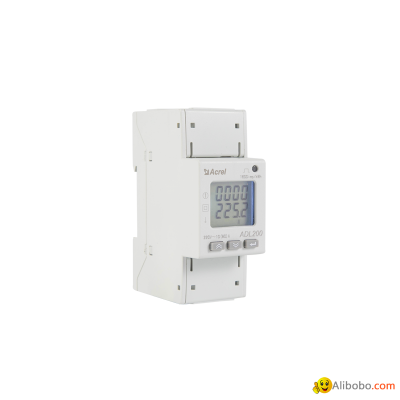

ADL200

Single phase bidirectional electrical din rail energy meter 220V output RS485 Modbus.The ADL200 single phase energy meter with rs485 adapts to wide voltage range, high reliability, long life, high precision, low power consumption. ADL200 rs485 energy meter

 has the function of RS485 communication. Energy meter with rs485 modbus can be widely used in single-phase energy metering and centralized installation in urban, rural or factory enterprises, if you want to know more about Acrel single phase kwh meter price, please contact us.

Technical Parameters of ADL200

Input voltage AC220V

Input current 10(80)A

Accuracy class 1

Function measure U 、I 、P 、Q 、S 、PF 、F

RS485 MODBUS-RTU

2-31 harmonics

Option /F: multi tariff and demand event record related functions

with MID certification

Net weight 0.5kg

Dimension 90mmx36mmx65mm
