GS5014LF Lan Pulse Transformer Trenntrafo Transformateur

GS5014LF Lan Pulse Transformer Trenntrafo Transformateur  Description

1.Pin number:12 or 16
2.Speed: 100base-TX
3.Usage: Pulse , Electronic
4.Coil Structure:Toroidal

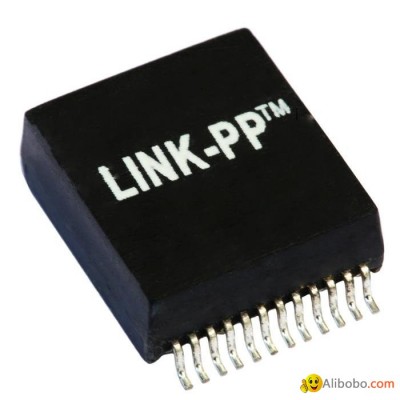

12 / 16pins LAN Pulse Toroidal Transformer For Pulse , Electronic

H1102NL,H5004NL,H5007NL,H1164NL,H1188NL,H5008NL,H2009NL,H1198NL,
H6080NL,H5014NL,H5012NL


GS5014LF Lan Pulse Transformer Trenntrafo Transformateur Description:

Electrical Specifications(25):

1. Turns Ratio50KHz, 0.5V

      Chip side: Line side=1CT: 1CT+_2%

2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:

Chip side: 350uH Min

3. Insertion Loss1-100MHz: -1.4dB Max

4. Return Loss1-30MHz: -16dB Min

            40MHz: -14.4dB Min

            50MHz: -13.1dB Min

            60-80MHz: -12dB Min

            100MHz: -10dB Min

5. Differential to Common Mode Rejection:

            30MHz: -45dB Min

            60MHz: -40dB Min

            100MHz: -35dB Min

6. Crosstalk30MHz: -40dB Min

            60MHz: -35dB Min

            100MHz: -30dB Min

7. Hi-Pot: 1500Vrms Min

GS5014LF Lan Pulse Transformer Trenntrafo Transformateur Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

GS5014LF Lan Pulse Transformer Trenntrafo Transformateur Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time

As a specialized manufacturer of GS5014LF Lan Pulse Transformer Trenntrafo Transformateurand the best supplier of "Texas Instruments",We can do many parts of RJ45 connector,  cross Tyco, Pulse, Belfuse ,the parts as follows:
