HuaWei LTE new and original module ME909S-120 PCIe

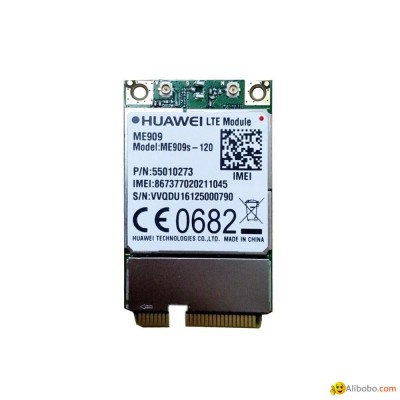

HUAWEI ME909s-120 Mini-PCIe Express - 4G/LTE module

Form Factor: 52-pin Mini-PCIe

Bands: ME909s-120  Mini PCIe:

          LTE (FDD): B1,B2,B3,B4,B5,B7,B8,B20

         DC-HSPA+/HSPA+/HSPA/UMTS : B1,B2,B5,B8

          EDGE/GPRS/GSM: 850/900/1800/1900 MHz

Data Transfer Rate: DC-HSPA+ :Downlink:42 Mbps, Uplink: 5.76 Mbps

LTE FDD: Downlink:150Mbps, Uplink: 50 Mbps  @Bandwidth 20M (CAT4)

Interface

Antenna connector

PCIe interface

USB 2.0 High speed

PCM Voice

SIM Card

LED Supply

Power Supply

Reset

Power Supply: 3.0 V to 3.6 V (3.3V typical)

Voice:

CM Voice

DTMF

Temp Range: -40°C to 80°C

Special Features

CDC-ECM

 FOTA

 Firmware Update via USB

 Embedded UDP/TCP/FTP(s)/HTTP(s) stack

 High-speed UART

 CMUX

Sleep mode

Operating System: Linux, Android, WinCE, Windows 8/10

Certificate: CE, GCF
