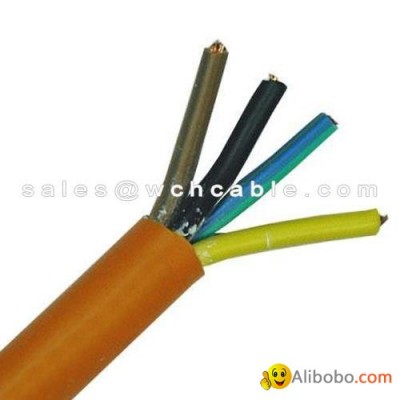

Automotive Custom Cable
USD $0.21 / meter
1220meter (MOQ)
- FOB Price：
- Negotiable | Get Latest Price
- Order Quantity：
- 1 Set / Sets
- Supply Ability：
- 1000 Set / Sets per Month
- Port：
- shanghai
- Payment Terms：
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- Delivery Detail：
- 5 days
WCH Cable Industrial Co., Ltd.
Hot in store
Product Details
Structure of Automotive Custom Cable
Conductor: >99.99% high purity copper wires
Insulation: PP / Polypropylene; PVC / Polyvinyl Chloride
Screen Shield: Copper wires braiding with aluminum foil, optional
Jacket: LSZH compliant material
Parameters of Automotive Custom Cable:
| Type | Wire Quantity | Conductor Gauge | Copper Strands | Insulation Thickness | Nominal Diameter | Jacket Thickness | Overall Diameter | Conductor Resistance |
| AWG | Nr/mm | mm | mm | mm | mm | Ω/km(20C) | ||
| Automotive Custom Cable | 4C | 30 | 7/0.100 | 0.23 | 0.80 | 0.61 | 5.50 | 381.00 |
| 4C | 28 | 7/0.127 | 0.23 | 0.90 | 0.61 | 5.70 | 239.00 | |
| 4C | 26 | 7/0.16 | 0.23 | 1.00 | 0.61 | 6.00 | 150.00 | |
| 4C | 24 | 11/0.16 | 0.23 | 1.10 | 0.61 | 6.30 | 94.20 | |
| 4C | 22 | 17/0.16 | 0.23 | 1.30 | 0.61 | 6.70 | 59.40 | |
| 4C | 20 | 21/0.178 | 0.23 | 1.50 | 0.61 | 8.20 | 36.70 | |
| 5C | 30 | 7/0.100 | 0.23 | 0.80 | 0.61 | 5.80 | 381.00 | |
| 5C | 28 | 7/0.127 | 0.23 | 0.90 | 0.61 | 6.10 | 239.00 | |
| 5C | 26 | 7/0.16 | 0.23 | 1.00 | 0.61 | 6.20 | 150.00 | |
| 5C | 24 | 11/0.16 | 0.23 | 1.10 | 0.61 | 6.70 | 94.20 | |
| 5C | 22 | 17/0.16 | 0.23 | 1.30 | 0.61 | 7.20 | 59.40 | |
| 6C | 30 | 7/0.100 | 0.23 | 0.80 | 0.61 | 6.20 | 381.00 | |
| 6C | 28 | 7/0.127 | 0.23 | 0.90 | 0.61 | 6.50 | 239.00 | |
| 6C | 26 | 7/0.16 | 0.23 | 1.00 | 0.61 | 6.80 | 150.00 | |
| 6C | 24 | 11/0.16 | 0.23 | 1.10 | 0.61 | 7.10 | 94.20 |
Manufacturing factory approval of Automotive Custom Cable (Cable, Spring Cable):
TS16949, QC080000, and ISO9001
