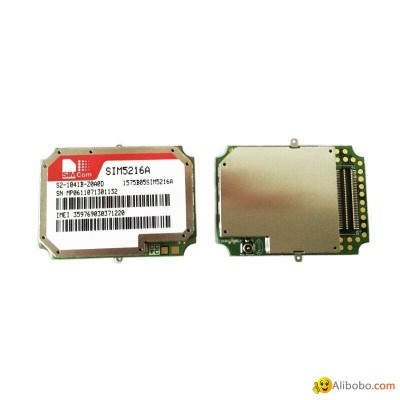

--SIM5216 series is Multi-Band HSDPA/WCDMA/GSM/GPRS/EDGE module solution which supports HSDPA up to 3.6Mbps for downlink data transfer.

--With abundant application capability like embedded LUA script, TCP/UDP/FTP/HTTP/HTTPS/SMTP/POP3 and MMS, the module provides much flexibility and ease of integration for customer’s application.  Its unique camera/video call feature shall add value to security solutions. It is ideal for a wide range of products including AMR, Gateway, Telematics, Tracking solution, Security solution and much more.

General features

SIM5216A: Dual-Band UMTS/HSDPA 850/1900MHz

                            Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

 SIM5216E: Dual-Band UMTS/HSDPA 900/2100MHz

                               Tri-Band GSM/GPRS/EDGE 850/900/1800MHz

SIM5216J:  Dual-Band UMTS/HSDPA 850(800)/2100MHz

       Quad-Band GSM/GPRS/EDGE 850/900/1800/1900MHz

GPRS multi-slot class 12EDGE multi-slot Class 12WCDMA 3GPP release 5Output power

         - UMTS 1900/850: 0.25W
         - UMTS 2100/900: 0.25W
         - GSM850/GSM900: 2W
         - DCS1800: 1W
         - PCS1900: 1W

Control Via AT CommandsSupply voltage range: 3.3V~ 4.2VOperation temperature: -30 °C to +80 °CDimension:  36mm × 26mm × 4.7mm Weight: 7g
