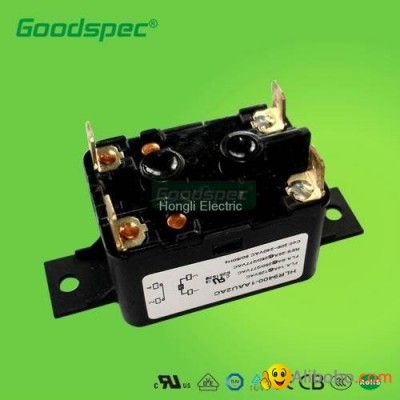

HLR9400-1AAU1AC(SPNO/14A/208-240VAC)Fan Relay

USD $5.70 / pc 1000pc (MOQ)

FOB Price：: Negotiable | Get Latest Price

Order Quantity：: 1 Set / Sets

Supply Ability：: 1000 Set / Sets per Month

Port：: shanghai

Payment Terms：: T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Delivery Detail：: 5 days

Hongli Electric Co.,Ltd

Business：



Hot in store

Product Details

1. Applicable Scope

HLR9400-1AAU1AC(SPNO/14A/208-240VAC)Fan Relays,Mainly Is Suitable For 50Hz Or 60Hz, The Nominal Current Up To The 14A at 120v and 8A at 277V.It is used on heating and air conditioning equipment to provide switching of heavier loads with a compact size relay.

2.Type and Meaning

HLR	9400	-	1A	A	U	1	AC
relay	serial	bulk pack	SPNO	AC	208-240VAC	power rated	panel mounting, dimensions (66.7mm)

3Fan Relays - HLR9400 Series

Model	Description	Rating of current Amps	FLA/LRA @125V	FLA/LRA @250V	Coil control voltage (VAC)
HLR9400-1AAQ1AB HLR9400-1AAT1AB HLR9400-1AAU1AB HLR9400-1AAV1AB HLR9400-1CAQ1AB HLR9400-1CAT1AB HLR9400-1CAU1AB HLR9400-1CAV1AB HLR9400-1XAQ1AB HLR9400-1XAT1AB HLR9400-1XAU1AB HLR9400-1XAV1AB	SPST-NO SPST-NO SPST-NO SPST-NO SPDT SPDT SPDT SPDT SPDT NO+NC SPDT NO+NC SPDT NO+NC SPDT NO+NC	25 25 25 25 25 25 25 25 25 25 25 25	14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60	8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48	24 120 240 277 24 120 240 277 24 120 240 277
HLR9400-1AAQ1AC HLR9400-1AAT1AC HLR9400-1AAU1AC HLR9400-1AAV1AC HLR9400-1CAQ1AC HLR9400-1CAT1AC HLR9400-1CAU1AC HLR9400-1CAV1AC HLR9400-1XAQ1AC HLR9400-1XAT1AC HLR9400-1XAU1AC HLR9400-1XAV1AC	SPST-NO SPST-NO SPST-NO SPST-NO SPDT SPDT SPDT SPDT SPDT NO+NC SPDT NO+NC SPDT NO+NC SPDT NO+NC	25 25 25 25 25 25 25 25 25 25 25 25	14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60 14/60	8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48 8/48	24 120 240 277 24 120 240 277 24 120 240 277

Conforms To The Standard

	1 、Conforms To UL508, IEC60947, GB14048 Standard
	2 、Approved By UL,CUL,TUV,CE,CCC,Safe Certification and ISO9001 System Certification(SGS)
	UL Files Number: E251539

4.Ordering Request

In Order To Guarantee You Purchase Right, Please Read The Specify Type Before Order.

If You Request As Follows: Nominal Current: 14A, Working Voltage: 120V, Pole Number:SPNO , Coil Control Voltage:208-240VAC, Wiring way:Group of 1/4 fast attachments. Load Current: Single-Phase Motor Controls Or linear Load,Installs the way:The foundation kneading board installment,the mounting dimensions(25/8") Packing: 120/Each Box (Factory Packing), Then You May Be Elect The Type : HLR9400-1AAU1AC

Ie	form	Coil Voltage					Motor Power
Ie	form	12VAC	24VAC	120VAC	208/240VAC	277VAC	240VAC
14A	SPNO	HLR9400-1AAB1AC	HLR9400-1AAQ1AC	HLR9400-1AAT1AC	HLR9400-1AAU1AC	HLR9400-1AAV1AC	0.6Kw
