Specifications
1 Automatic: 10/100/1000M Single Mode, single firber.
2 Distance up to 120KM.
3 Got CE, FCC, RoHS Certif.

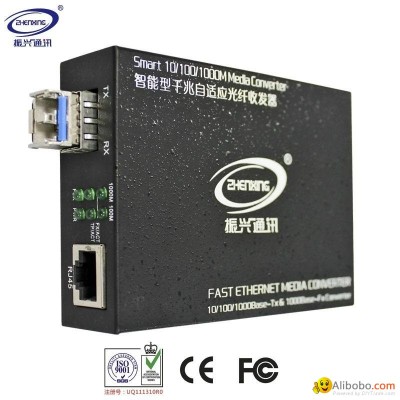

Fast ethernet fiber optical converter
10/100M fast Ethernet media converter is one of my company's new high-speed Ethernet transmission products. Which is independently developed and manufactured by us. It can be achieved in two different twisted pair and fiber optic transmission media conversion, relay 10/100base-TX and 100base-FX in two different network segments. Further more, it boasts long-distance(as far as 120KM), high-speed(10100Mbps), high bandwidth and so on perfect quality, especially, it has a wide range of adoptive functions to comply with different requirments, details introduction as follows

Feature
According with the IEEE802.3, IEEE802.3u, IEEE802.3dSpanningTree
10/100base-TX and 100base-FX Standard
Interface support: Fiber optic interface is SC. RJ45 twisted-pair interface
Automatically adapt to full / half duplex mode
Automatic MDI / MDIX work method without the need for cable choice
Comprehensive LED
Transmitting distance up to 120Km
10/100M Auto-negotiation
External and internal power supply optional
2U-14 slots rack(external power supply) and 4U-slots rack(card-inserted) media convert optional
Buffer Space 1Mbit
Operating Temperature: -10 ~ 50
Storage temperature: -40 ~ 70
Environmental humidity: 5% -90%

Applications
1. Apply to ready to rise to 10M extended enterprise network bandwidth 100M
2. Telecommunications
3. Local area network
4. Widely used for computer data transmission network to meet a variety of business needs
5. Apply to the campus broadband network, broadcasting network and intelligent residential broadband fiber-to-floor fiber to the home data transfer
6. With the switches and other computer network equipment can be combined to form-chain, star, ring-type network and other computer networks

Product No.	wavelength	Optical interface	Electric interface	Optical power(dBm)	Accept sensitivity(dBm)	Transmission distance
CY-96110SB-20A/B	1310nm	SC/ST	RJ-45	-15 to -8	< -33	2km
CY-96110SB-25A/B	1310nm	SC/ST	RJ-45	-13 to -8	< -37	20km
CY-96110SB-40A/B	1310nm	SC/ST	RJ-45	-8 to -3	< -37	40km
CY-96110SB-60A/B	1310nm	SC/ST	RJ-45	-3 to 0	< -37	60km
CY-96110SB-80A/B	1550nm	SC/ST	RJ-45	-5 to -3	< -37	80km
CY-96110SB-100 A/B	1550nm	SC/ST	RJ-45	-3 to 0	< -37	100km
CY-96110SB-120A/B	1550nm	SC/ST	RJ-45	> -1	< -37	120km
