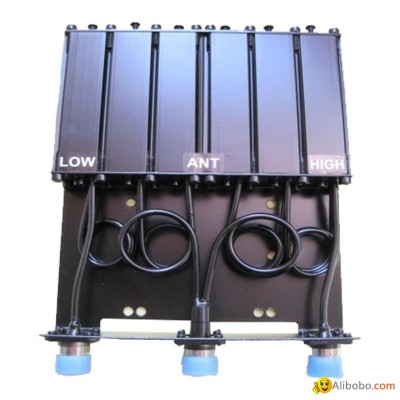

SGQ-150 VHF Duplexer
USD $55.00 / pc
1pc (MOQ)
- country
- ChinaGuang Dong
- stock
- Delivery period
- Ships within days after payment
- parameters：
- brand：JIESAI
- Join In
- Service Introduction
Product Details
30W SGQ-150 Duplexer | |||||
| Specifications |
| |||
| Product Type | SGQ-150 |
| ||
| Frequency Range | 137-180MHz |
| ||
| VSWR | ≤1.40 |
| ||
| Bandwidth(KHz) | ±100 | ±200 | ±100 |
|
| Frequency Spacing(MHz) | ＞6-15 | ＞5-6 | ＞3.8-5 |
|
| Insertion Loss | ≤1.5dB | ≤1.2dB | ≤1.5dB |
|
| Isolation | ≥75dB |
| ||
| Maximum Input Power | 30W |
| ||
| Normal Impedance | 50Ω |
| ||
| Connector | N-F/BNC-F |
| ||
| Operating Temperature | -20℃ - +50℃ |
| ||
| Weight(kg) | 1.2KG |
| ||
| Dimensions | 220×154×35(±0.5mm) |
| ||
