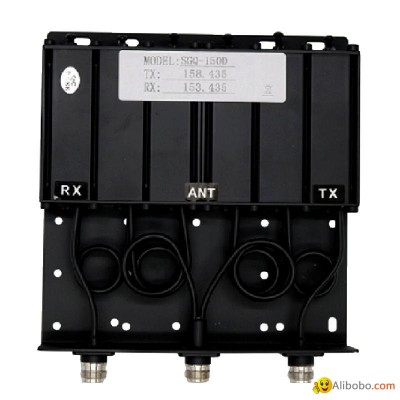

SGQ-150D VHF Filter
USD $55.00 / pcs
1pcs (MOQ)
- country
- ChinaGuang Dong
- stock
- Delivery period
- Ships within days after payment
- parameters：
- brand：JIESAI
- Join In
- Service Introduction
Product Details
| specification | ||||||||||||
| Type | SGQ-150D | |||||||||||
| Frequency Range | 137-180MHz | |||||||||||
| VSWR | ≤1.40 | |||||||||||
| Bandwidth(KHz) | ±100 | ±200 | ±100 | |||||||||
| Frequency Spacing(MHz) | ＞6-15 | ＞5-6 | ＞3.8-5 | |||||||||
| Insertion Loss | ≤1.5dB | ≤1.2dB | ≤1.5dB | |||||||||
| Isolation | ≥75dB | |||||||||||
| Maximum Input Power | 50W | |||||||||||
| Normal Impedance | 50Ω | |||||||||||
| Connector | N-F/BNC-F | |||||||||||
| Operating Temperature | -20℃ - +50℃ | |||||||||||
| Weight(kg) | 1.5KG | |||||||||||
| Dimensions | 218×190×40(±0.5mm) | |||||||||||
