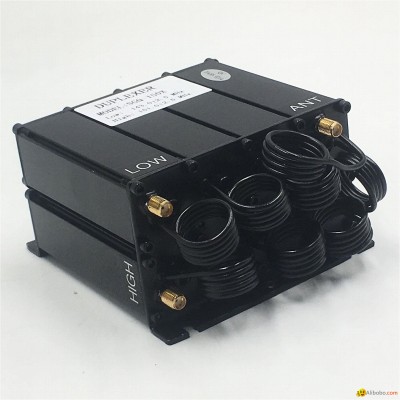

VHF Cavity Duplexer

The base station duplexer is ideal for high power, close frequency separation installations. These filters are designed for combining two frequencies or they can be used as efficient pre-selectors. If higher levels of isolation are required, please consider using 6 cavity configurations. Selectivity can be determined by the field adjustable capacitors. Each cavity is temperature compensated for operation between -40ºC to +65ºC. Each cavity has silver-plated loops, and silver-plated tuning rods.

●Specifications:

Product Number	XL-T-SGQ-150-6
Electrical Specifications
Channel	Low Pass (RX)	High Pass (TX)
Frequency Range	136~174MHz	136~174MHz
	Frequency can be made within 136~174MHz range
RX-TX Min. Separation	0.5MHz
Cavity Quantity	6（RX: 3 cavity, TX: 3 cavity）
Cavity Shape	Square
Insertion Loss	≤[email protected] spacing, ≤1.5dB@5MHz spacing
VSWR	≤1.35
Rejection	≥[email protected] spacing, ≥100dB@5MHz spacing
RX-TX Isolation	≥[email protected] spacing, ≥100dB@5MHz spacing
Max. Input Power	350W (CW)
Mechanical Specifications
Operating Temperature	-40℃～+65℃
Inner Conductor	Silver plated copper
Connector Type	N-Female，50Ω
Dimensions	320mm675mm212mm
Shipping Size	800mm390mm280mm
Net Weight	17.5KG
Shipping Weight	25KG
Appearance	Silver Color
