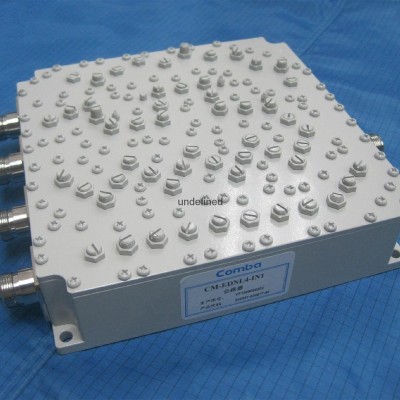

combiner
USD $50.00 / pc
1pc (MOQ)
- country
- ChinaGuang Dong
- stock
- Delivery period
- Ships within days after payment
- parameters：
- brand：xinlun
- Join In
- Service Introduction
Product Details
Specification
Item | GSM | DCS | TD(F+A) | WLAN |
Frequency arrange （MHz） | 885-954 | 1710-1830 | 1880-2025 | 2400-2500 |
Insertion loss（dB） | ≤0.6 | ≤0.8 | ≤0.8 | ≤0.8 |
Passband Ripple（dB） | ≤0.4 | ≤0.5 | ≤0.5 | ≤0.5 |
VSWR | ≤1.25 | ≤1.25 | ≤1.25 | ≤1.25 |
Out-of-Band rejection（dB） | ≥80@1710-1830MHz | ≥80@885-954MHz | ≥80@885-954MHz | ≥80@885-954MHz |
≥80@1880-1920MHz | ≥80@1880-1920MHz | ≥80@1710-1830MHz | ≥80@1710-1830MHz | |
≥80@2010-2025MHz | ≥80@2010-2025MHz | ≥80@2400-2500MHz | ≥80@1880-1920MHz | |
≥80@2400-2500MHz | ≥80@2400-2500MHz |
| ≥80@2010-2025MHz | |
IM.3rd roordorder(dBc) | ≤-120@2×43dBm | |||
Power （W） | 200 | |||
Connector | N（F） | |||
