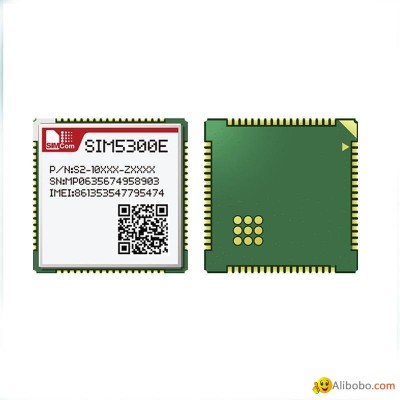

The SIM5300E is a Dual-Band HSPA/WCDMA and Dual-Band GSM/GPRS/EDGE module in a SMT type which supports HSPA up to 7.2Mbps for downlink  and 5.76Mbps for uplink data transfer.

It has strong extension capability with rich interfaces including UART, USB2.0, SPI, I2C, etc. With abundant application capability like TCP/UDP/PPP, the module provides much flexibility and ease of integration for customer’s application.

General features

• Dual-Band WCDMA/HSPA 900/2100MHz

• Dual-Band GSM/GPRS/EDGE 900/1800MHz

• GPRS multi-slot class 12

• EDGE downlink only

• Output power

  - UMTS 900/2100:0.25W

  - GSM900:2W

  - DCS1800:1W

• Control Via AT Commands

• Supply voltage range:3.4V~ 4.4V

• Operation temperature:-40℃ to +85℃

• Dimension:24 X24X 2.4mm

• Weight:3.2g

Specifications  for  Data transfer

• HSPA

- Max.7.2Mbps(DL), Max.5.76Mbps(UL)

• WCDMA

- Max.384Kbps(DL), Max.384Kbps(UL)

• EDGE Class:

- Max.236.8Kbps(DL),

• GPRS

- Max.85.6Kbps(DL), Max.85.6Kbps(UL)
