Summary

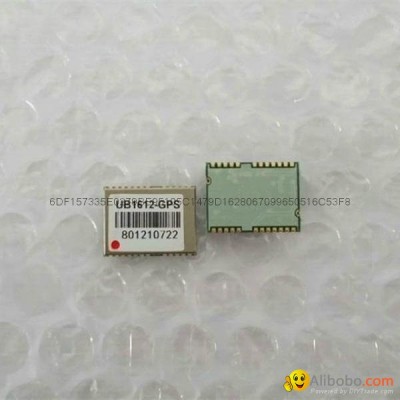

Main chip: U-BLOX G6010 ST

C / A code, 1.023MHz stream code 1 023MH stream

Receive band: L1 [1575.42MHz]

Tracking channels: 50

Positioning performance

Autonomous positioning: 2.5m [average] autonomous positioning: 2 5m [average]

Assisted positioning: 2m [average], there SBAS assistance.

Drift: <0.02m / s

Timing accuracy: 1us

Reference coordinate system: WGS-84

Maximum altitude: 50,000 m

Maximum speed: 500m / s

Acceleration: <4g

Electrical properties:

Tracking sensitivity: 160dBm tracking sensitivity: -160dBm

Acquisition sensitivity: -146dBm

Cold start time: 32s [average]

Warm start time: 32s [average]

Hot start time: 1s [average]

Operating temperature:
-35 ℃ to + 80 ℃

Package Dimensions:
16.4 * 12.2 * 2.5mm

Electrical properties of the electrical properties of the interface connector:

Wide voltage range: the main power supply is + 2.7 ~ 3.6V, RTC power supply is + 1.4-3.6V [support will not receive power RTC]

Using active antenna (15 ~ 26dB / 3.3V), or passive antenna

4800bps or 9600bps baud output data or 38400bps [support inside the module settings]
