SPECIFICATIONS

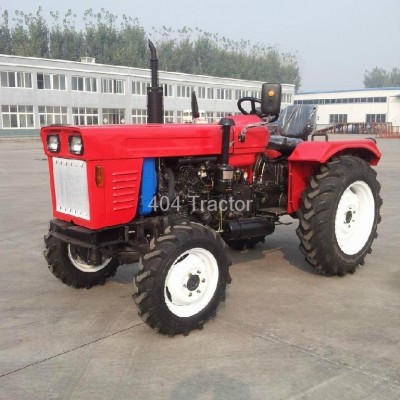

Tractor Model TS404
Tractor Type 4x4
Overall dimentions: 3320x1450x2110
Construction weight (kg) 1650
Rated Traction Force (KN) 12
Front wheel tread (mm) 1287
Rear wheel tread (mm) 1104-1504(Adjustable)
Wheel base(mm) 1950
Min. Land clearance (mm) 365

Engine
Engine model JDM490
Type 4 Cylinder, in-line, water cooling, 4 strokes, direct injection
Bore & Stroke(mm) 90 &105
Rated revolution (r/min) 2300
Rated power (kw/HP) 29.4 (40)
Max. Torque (n. M) 151
Speed of Max. Torque (r. P. M) 1800
Fuel Consumption(g/kw. H) 245
Oil Consumption(g/kw. H) 2.04

Transmission
Clutch Dry type, single-stage
Gear box Spur gear (4+1)x2, plain compound type
Differential Two planet bevel gear, closed
Main Drive Spiral bevel gearing
Final Drive Spur gear, External gearing

Working Device
Lifter tilling depth control Draft and Positional adjustable lifter
Max. Lifting capacity (KN) 6.62
Suspension type Postposition, Three point, I category
Speed of P. T. O(r/min) 540, 750
P. T. O. Power (kw) 26.4
Steering Type Front wheel steering, power steering
Brake System Locking footboard shoe type
OPTIONS: Backing Mirror, Roll Bar, Canopy, Front ballast, Rear ballast, Streamline hood
