SC/upc fast connector 45-60mm length, SM/MM optical patch cord loose tube,2.0mm
Price:US $0.00 /
Product Description

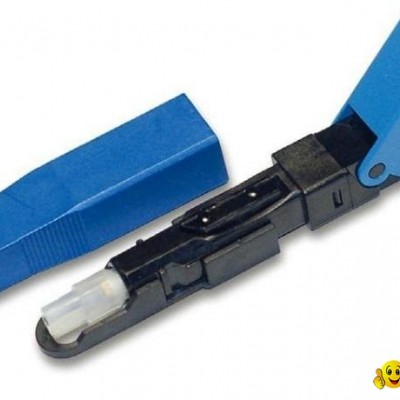

Fast Field Connector WFQA-SC/UPC is a quick device for fiber optic cable connection. It's light weight and easy operation.
Feature:
> SC/UPC Field Assembly Connector, body length:58mm
> No need splice machine, easy operation
> Front push type lock
> Visual operation
Specification:
ITEM | Technical Parameters |
Applicable Fiber | 3.1*2.0mm Drop cable&250um&900um Fiber |
Optical fiber diameter | 125Um(G652D,657A&657B) |
Tight buffer diameter(um) | 250um |
Fiber mode | Single mode |
Operation time | about 30s(no fiber cut) |
Average Insert loss | ≦0.30dB(1310nm&1550nm) |
Return loss | ﹥45dB |
Fastening strength of naked fiber | ﹥5N |
Fastening strength of naked fiber holder | ﹥8N |
Tensile strength | ﹥50N |
Using temperature | -40~+75℃ |
On-line tensile strength(50N) | IL≦0.2Db RL≦5dB |
Repeatability(10times) | IL≦0.2Db RL≦5dB |
Application:
> PON system
> CableNET
