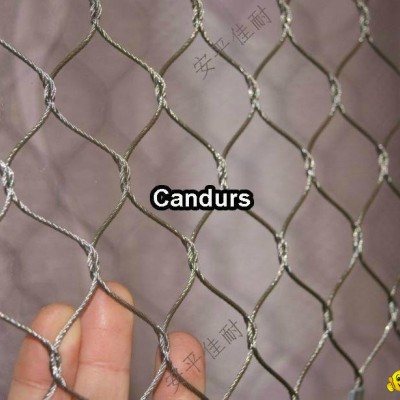

China Pongidae Enclosure Mesh manufacturer,factory,Candurs's Wovenrope™ stainless steel hand woven rope  mesh diamond opening when you stretched at 90 degree angle,unique design, widely use as security fencing, security screens, Animal cage, safe net etc.



Feature of Pongidae Enclosure Mesh:Unique design ideaFlexible,elegant,discreet,filigreed,multifunctionalLightCorrosion resistant,allows heavy airflowTotal pro-environment,recyclable,no toxic,non-flammableOnce Pongidae Enclosure Mesh was installed,maintenance free,don't ask any special cleaning or coating



Long using life

Available  304 and 316 stainless steel.
Ropes diameter: from 1mm - 4mm
Structure: 7x7,7x19
Mesh size: Opening width ( OW ) from 20mm - 120mm,opening height ( OH ) from 20mm - 120mm
Variety of loops solution
Customized cable mesh width and length
Easily install,Pongidae Enclosure Mesh can be fixed on stainless steel tube (frame) or tensioned with stainless fitting.
Standard Specification:

OW X OH	Wire Diameter
	1.2 mm	1.6mm	2.0 mm	2.4 mm	3.2 mm
25 mm x 25 mm	WD1225	WD1625
30 mm x 30 mm	WD1230	WD1630
38 mm x 38 mm	WD1238	WD1638	WD2038
51 mm x 51 mm	WD1251	WD1651	WD2051	WD2451	WD3251
60 mm x 60 mm	WD1260	WD1660	WD2060	WD2460	WD3260
76 mm x 76 mm	WD1276	WD1676	WD2076	WD2476	WD3276
90 mm x 90 mm	WD1290	WD1690	WD2090	WD2490	WD3290
102 mm x 102 mm	WD12102	WD16102	WD20102	WD24102	WD32102
120 mm x 120 mm	WD12120	WD16120	WD20120	WD24120	WD32120



Packing︰ Roll,Piece
